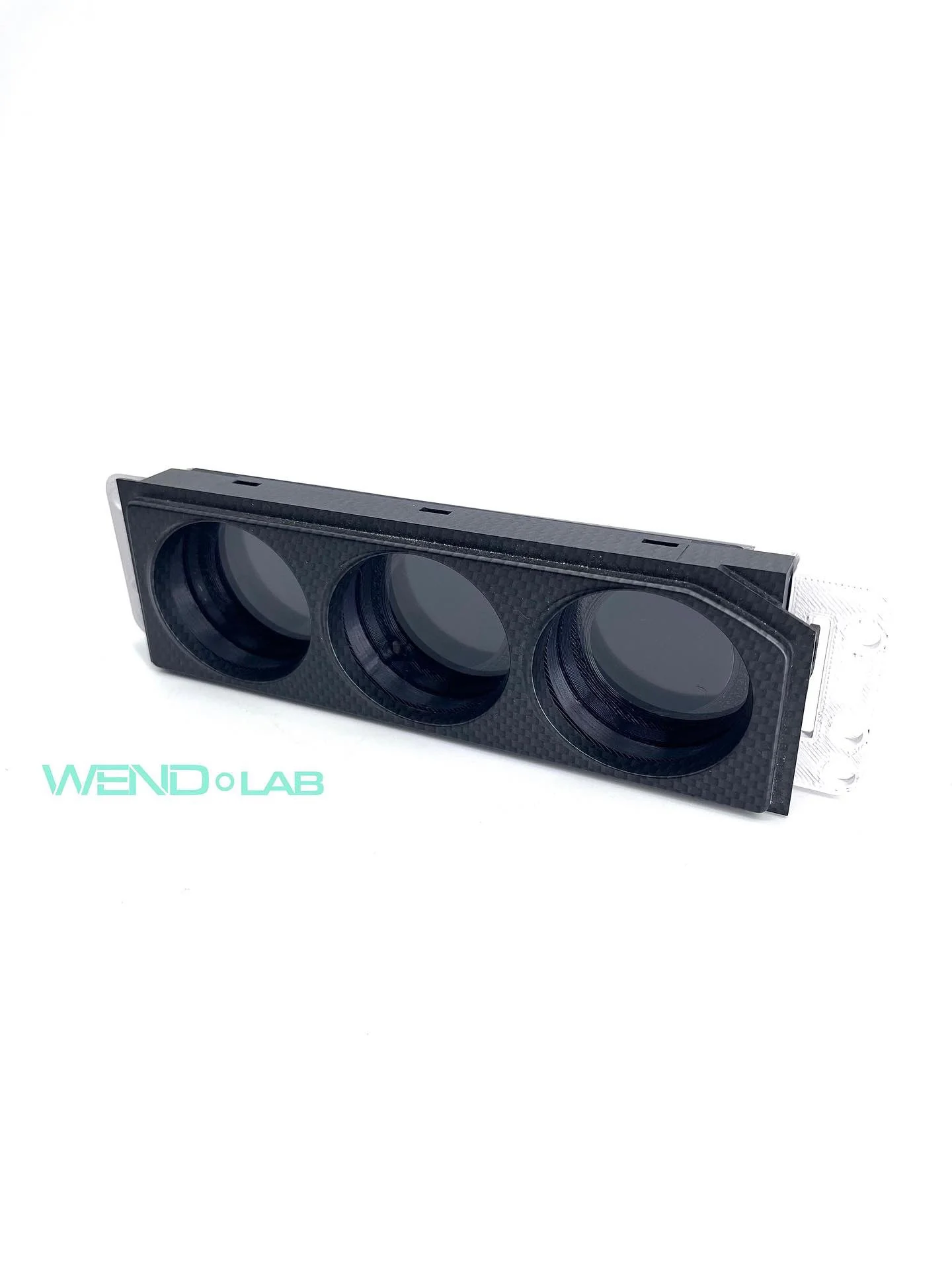

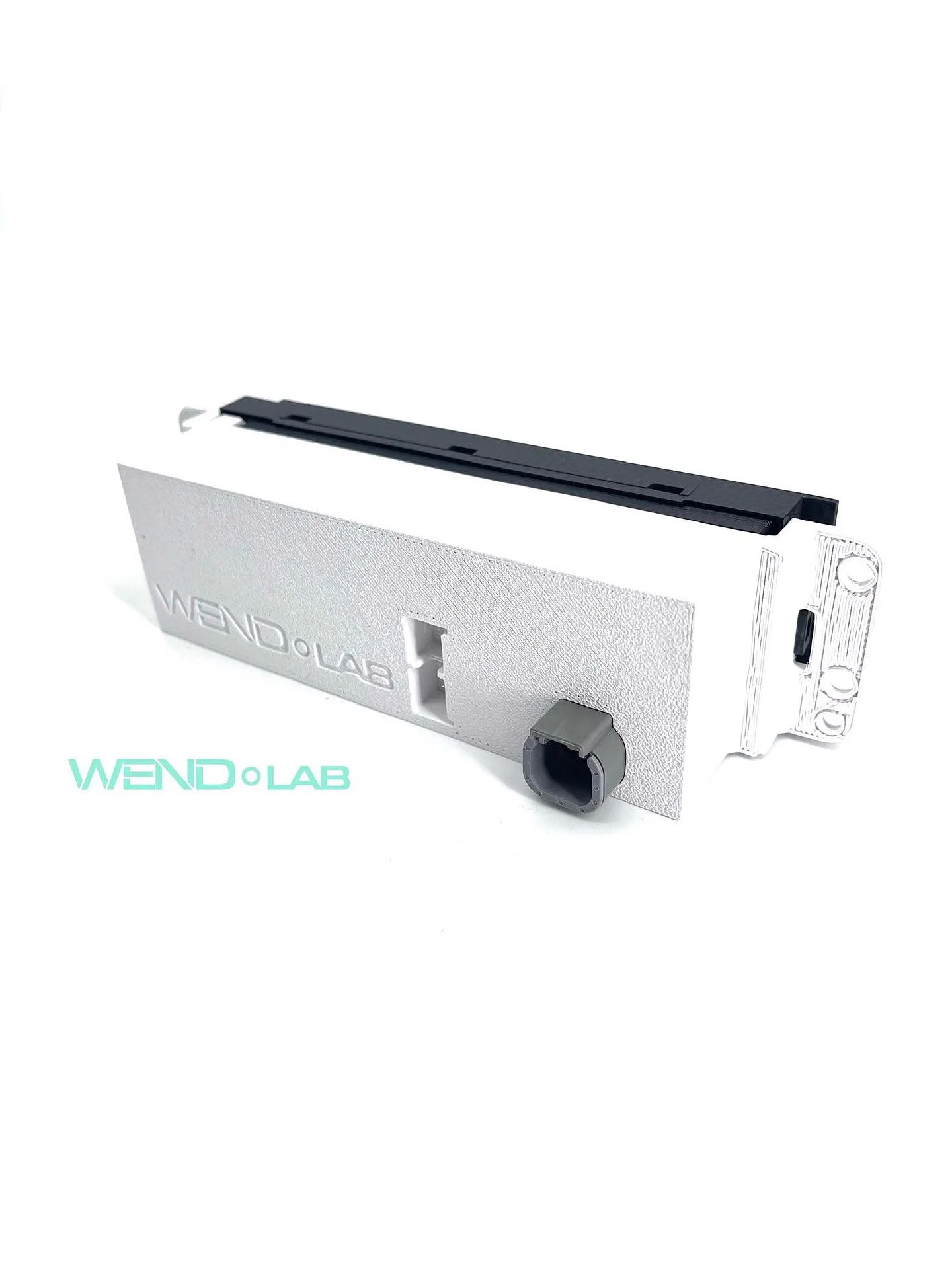

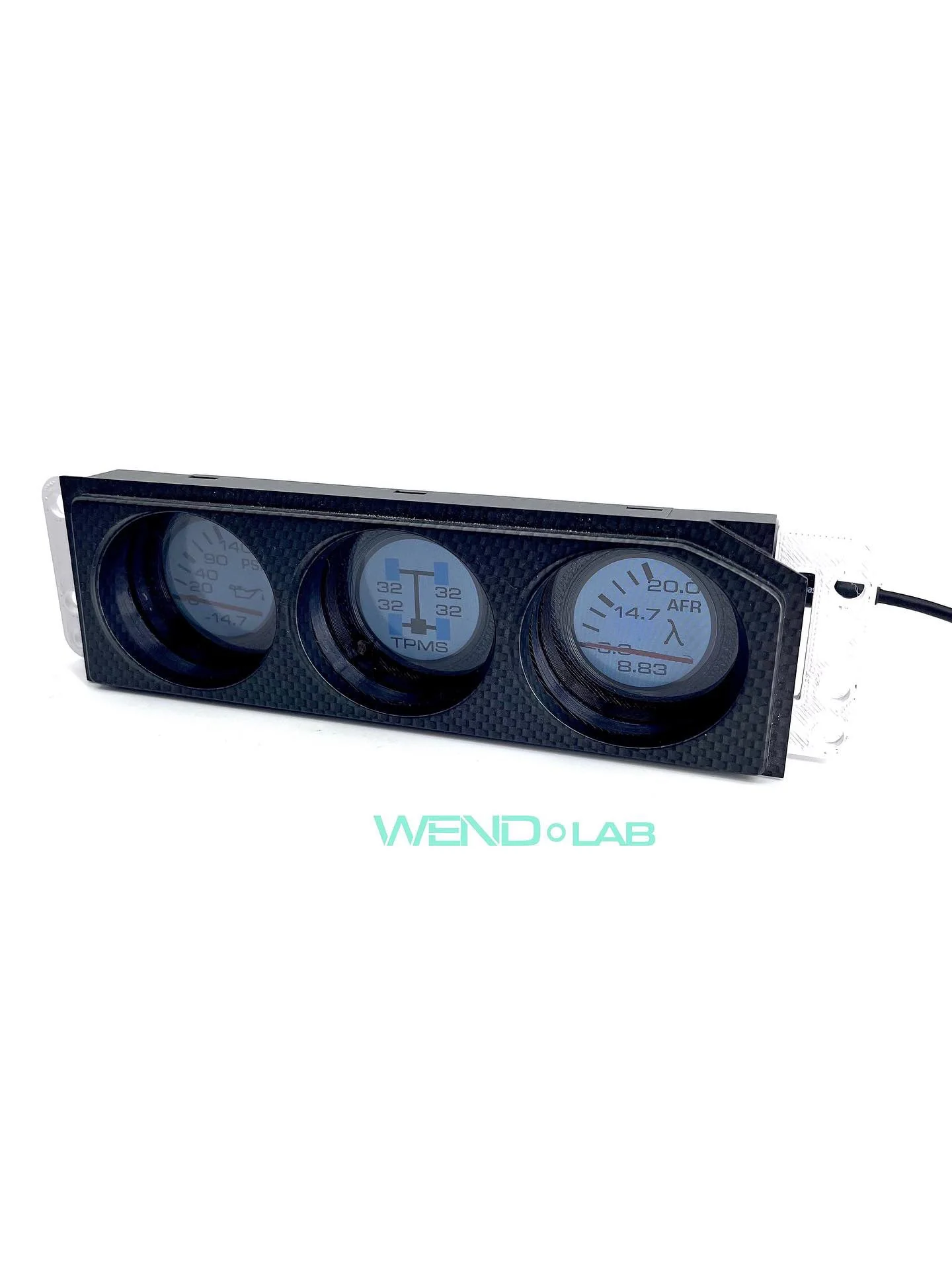

WEND LAB C34 Stagea DIN Triple CANBUS Gauge

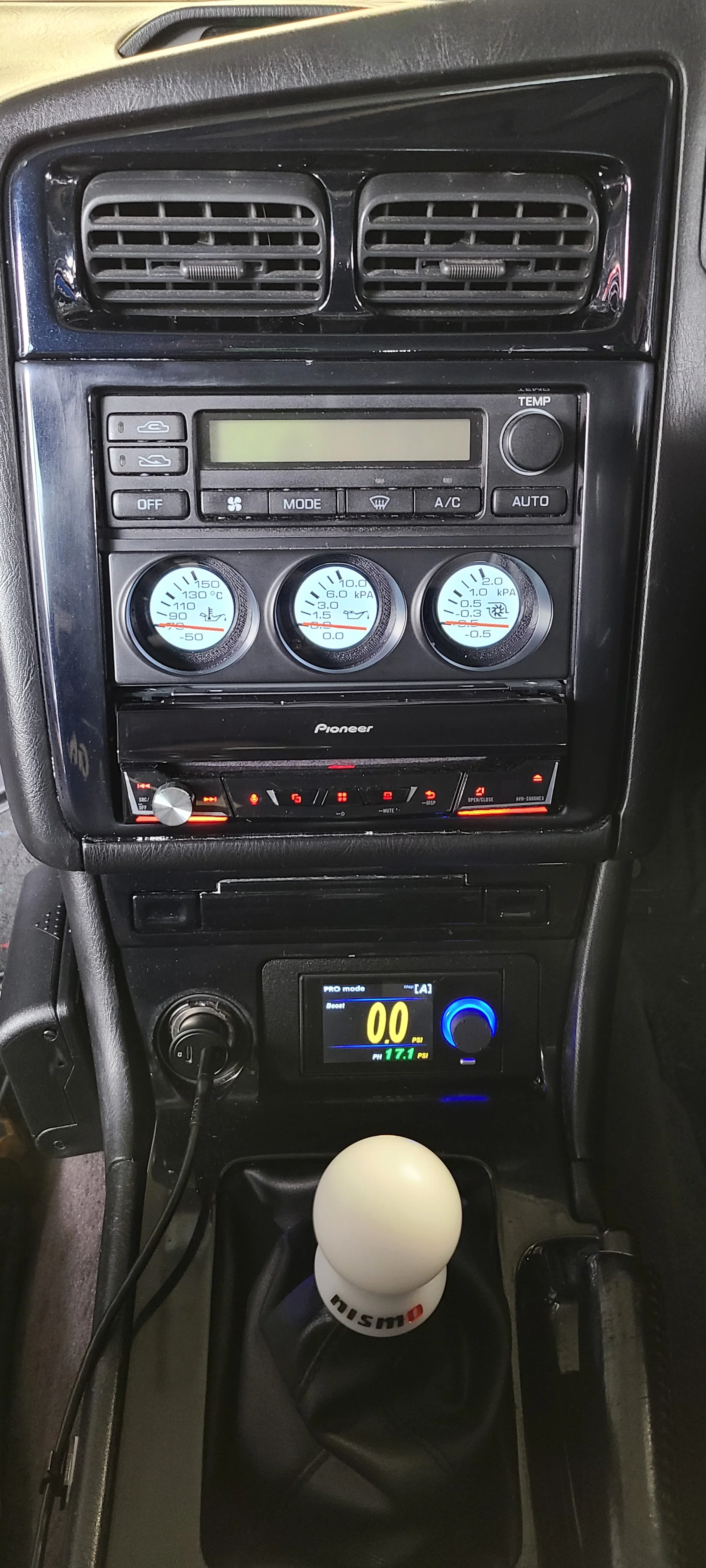

This CANBUS gauge replaces the factory DIN triple meter in your C34 Stagea with 3 fully configurable gauges to take advantage of the CANBUS data stream from your aftermarket ECU.

Click here for ->Install setup<- for Link and Haltech ecus.

Features :

• Customizable appearances
• Configurable warning levels
• Configuration via IOS App over Bluetooth
• Auto-dimming displays with night mode
• Single DTM 4 pin connector wiring

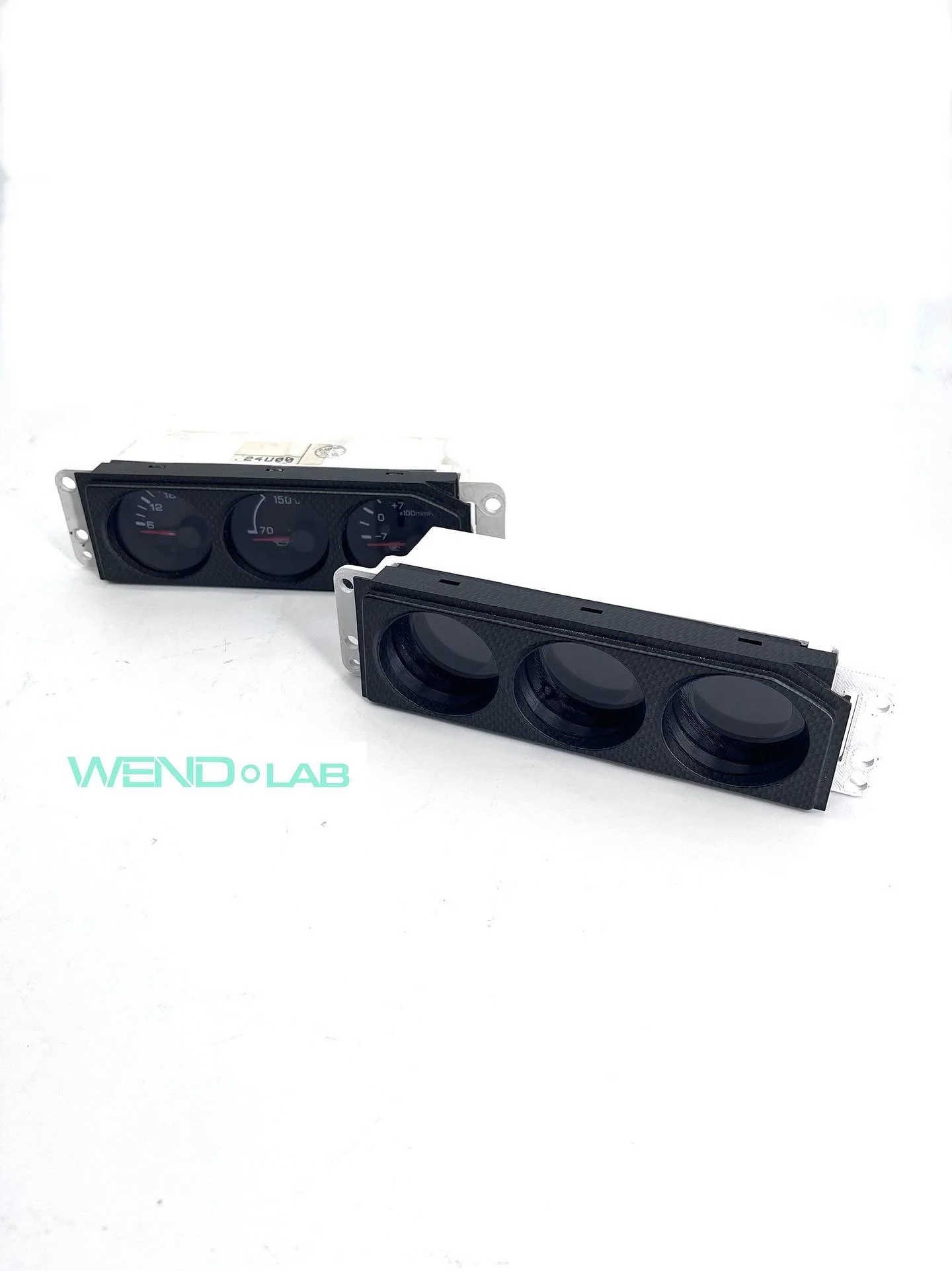

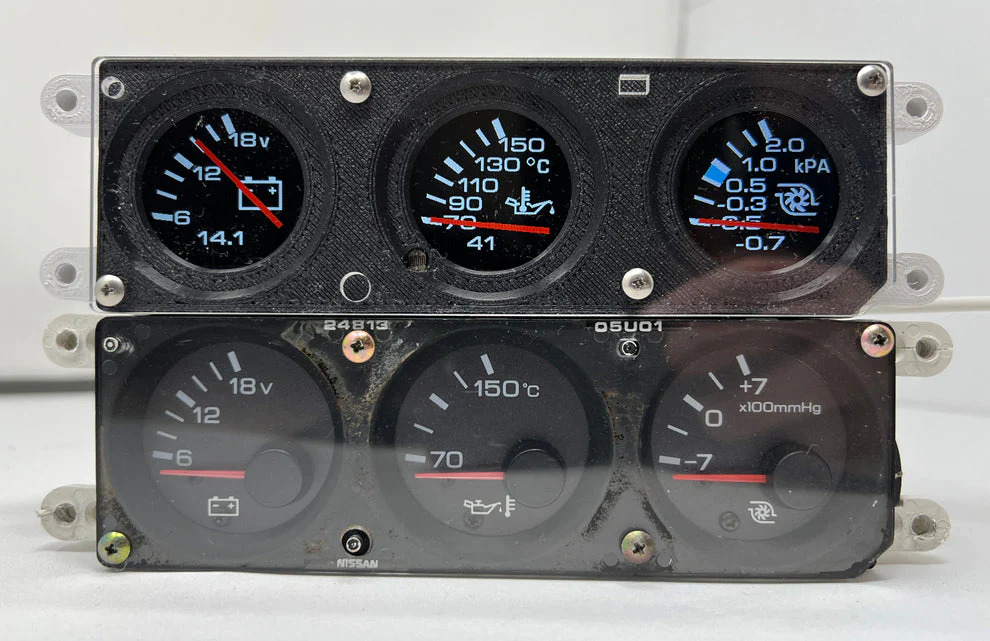

• Direct replacement of factory unit -- uses factory trim bezel

Supported ECUs :

• Haltech (CAN protocol v2)
• Link (G-Series)
• Emtron (KV Series)

Platforms in Development :

• MoTeC 1 Series
• ECUMaster Black Series

Supported gauges
(Requires that your ECU has the appropriate sensors and CAN configuration) :

• Battery Voltage
• Water Temp
• Oil Temp
• Fuel Temp
• Intake Air Temp
• Exhaust Gas Temp
• Water Pressure
• Oil Pressure
• Fuel Pressure
• Boost Pressure
• Air Fuel Ratio
• Ethanol Content
• Injector Duty
• Throttle Position
• Tire Temp/Pressure
• Fuel Tuning (AFR, Fuel Pressure, Injector Duty)
• Engine Health (Oil Temp/Presure, Water Temp/Pressure, IAT, Voltage, EGT)
• Boost Control (Boost vs. Target, Solenoid Duty, Ethanol %)
• Gear Position
