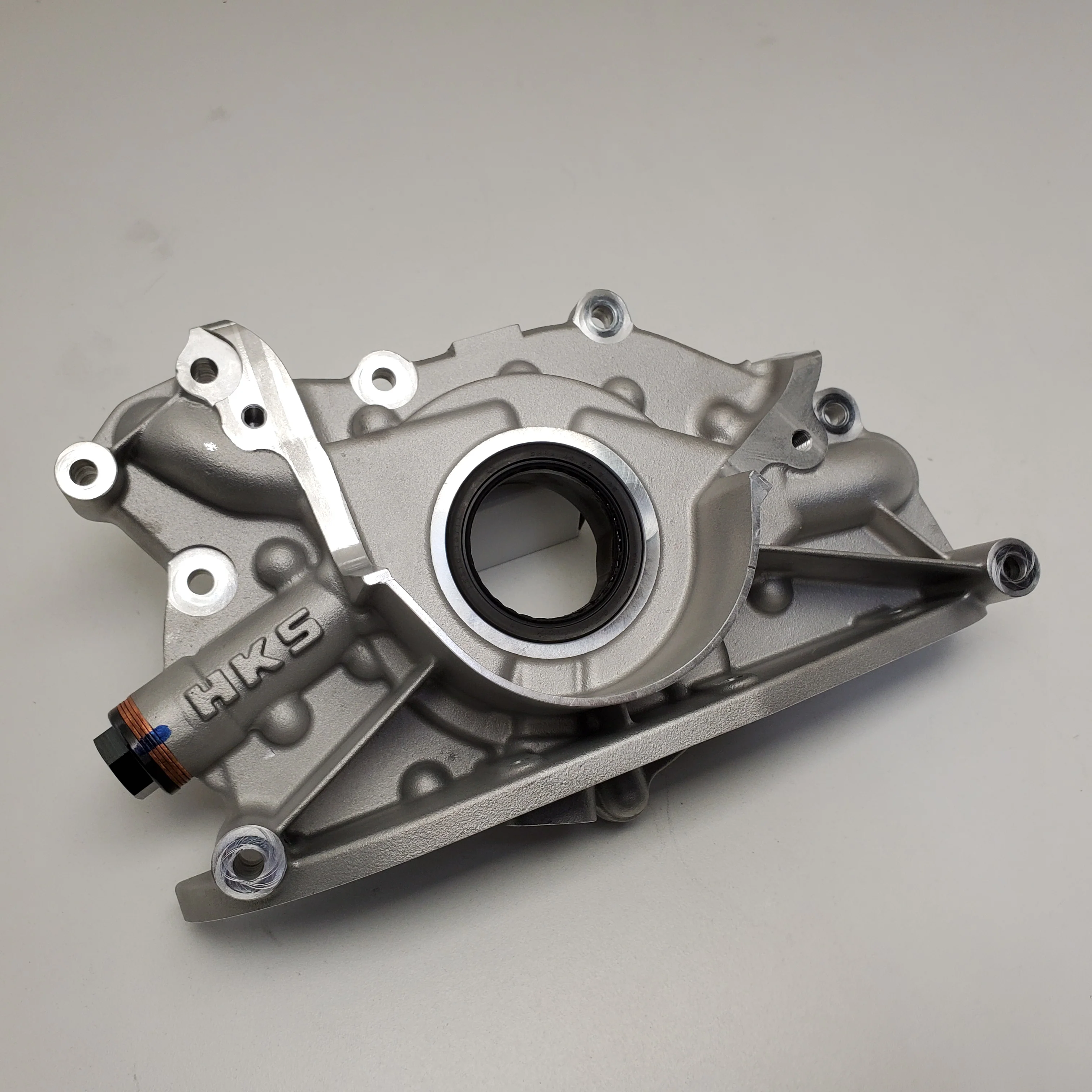

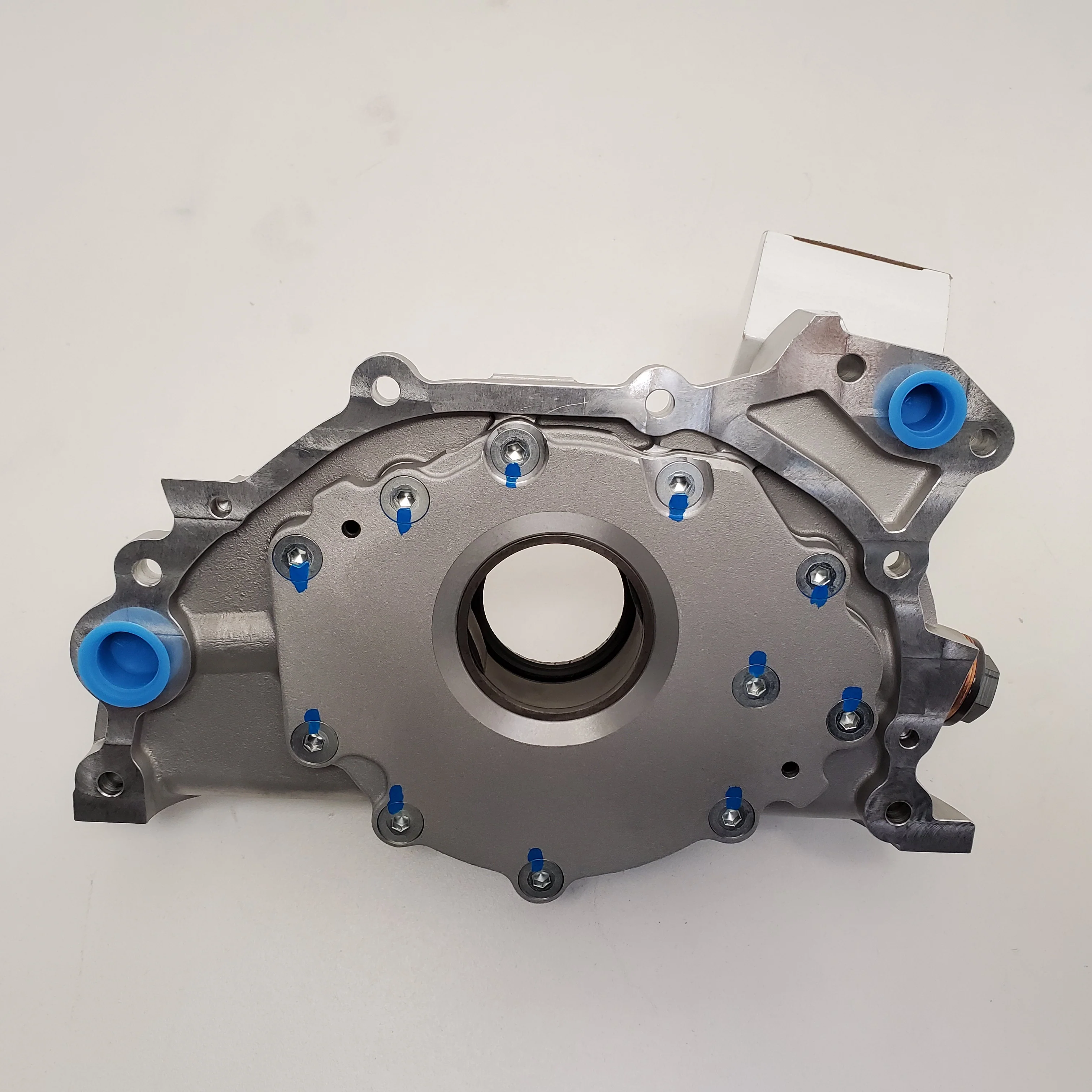

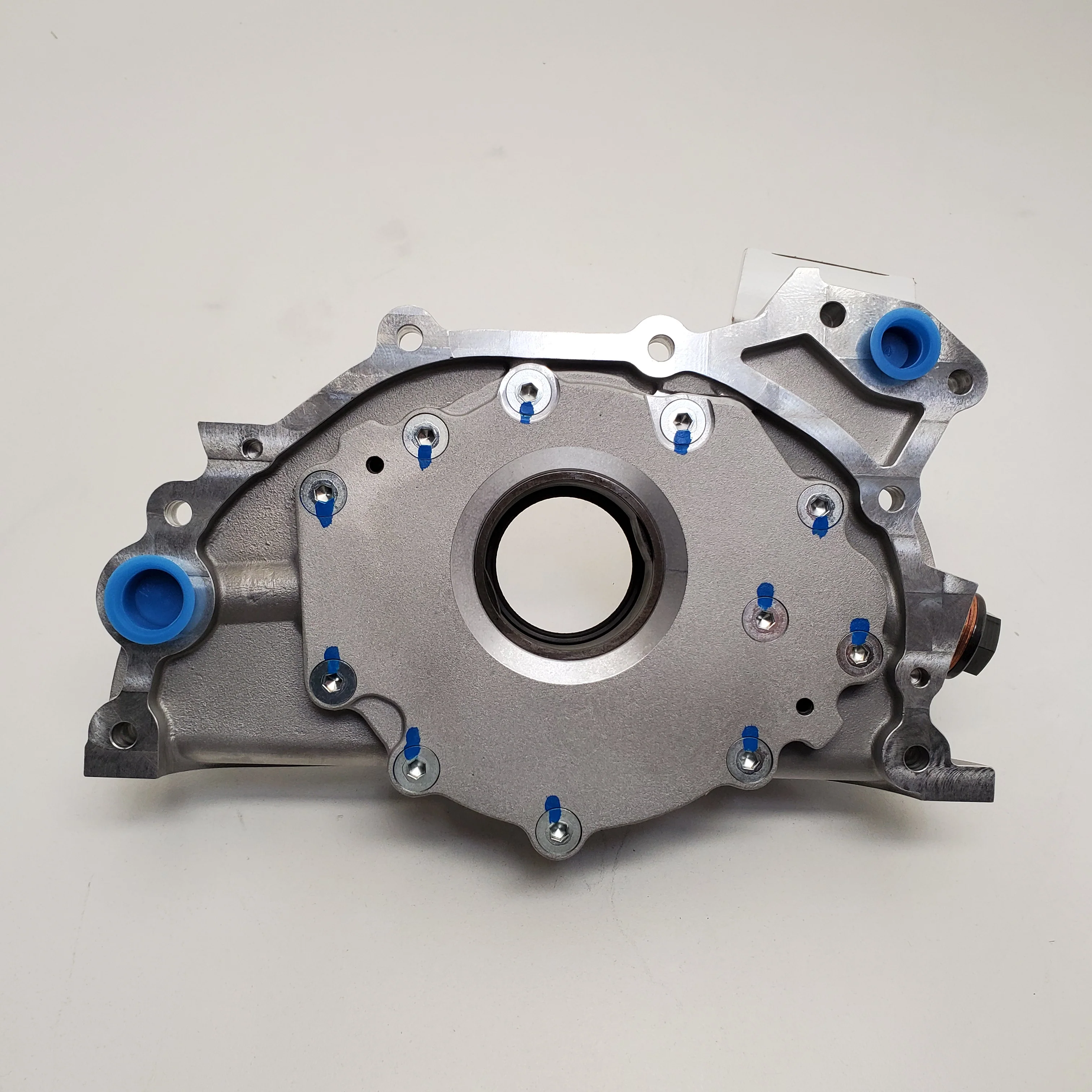

HKS Oil Pump
ćOIL PUMP UPGRADEć
for RB26DETT
Newly designed case shape improves durability and oil flow amount. HKS Oil Pump Upgrade provides reliable oil supply for tuned engines.
FEATURES
- Larger rotor increases oil flow amount compared to the existing pump.
- New improved design now includes adjustable oil relief pressure (the alternator must be removed.). Utilizing outer shim enables adjustment to be visible.
- Thickness of driving rotor's contact portion is increased, and contact surface shape is optimized.
Thickness increase and material upgrade retain twice as much of rotor strength as the stock pump. - HKS Oil Pumps have reviewed the case design to retain sufficient rotor strength and to reduce oil flow resistance after applying pressure.
| Ā | HKS | STOCK | ||
|---|---|---|---|---|
| Discharage (L/min.) @6000rpm | 65 | 38% up | 42-47 | |
| Hydraulic Adjustment | Available | (Adjustable when installed) | Not Available | |
| Roter | Material | SCM435 | Liquefied sintered Allow | |
| Outer Size | Outer Diameter | Ļ88 | Ā | Ļ81 |
| Tooth Width (mm) | 12.4 | 12% UP | 11.0 | |
| Tooth Number (mm) | 10:11 | Ā | 12:13 | |
| Min. Thickness | Inner (mm) | 7.4 | 37% UP | 5.4 |
| Outer (mm) | 5.0 | 11% UP | 4.5 | |
