HKS Stroker Kit High Response

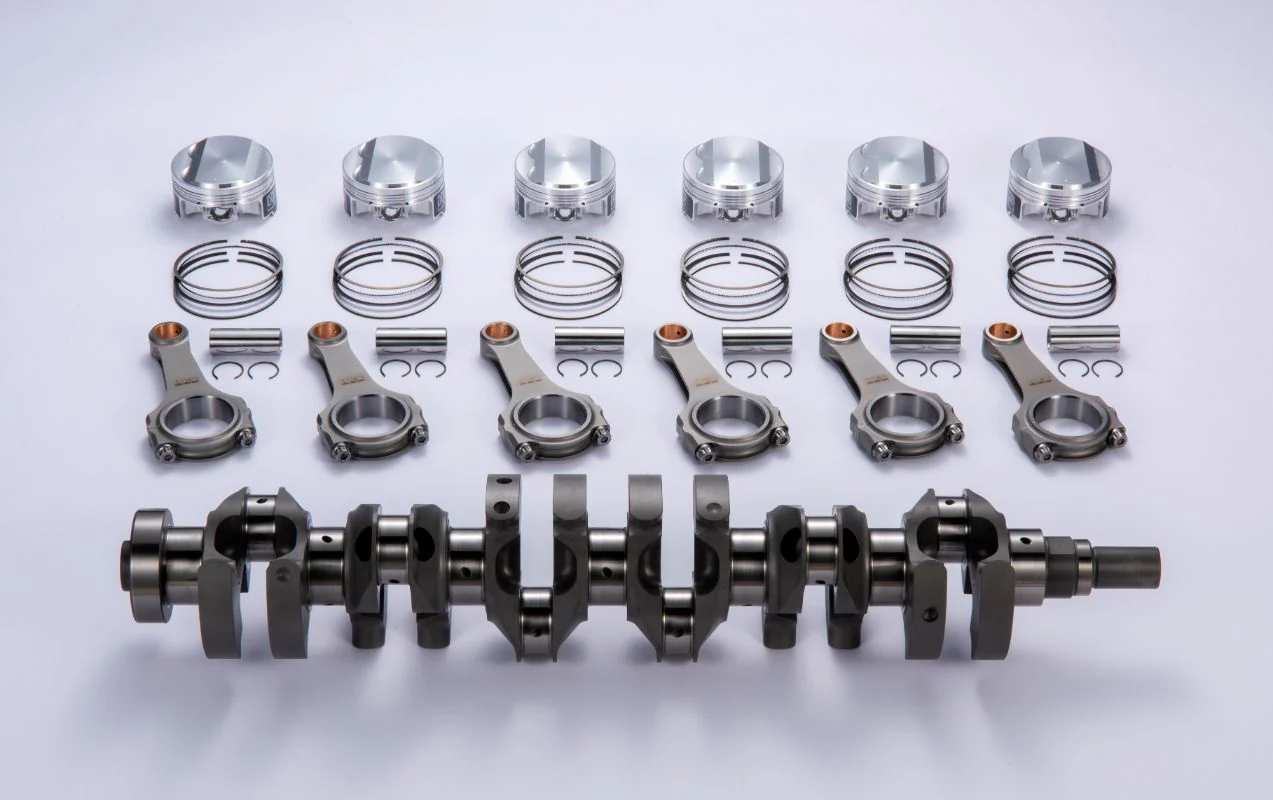

【Capacity Upgrade Kit RB26DETT 2.8L KIT HIGH RESPONSE】

Capacity upgrade kit brings the best of tuning to the legendary inline 6 and focuses on engine response and pleasure of driving.

Specifications

Features

Lightweight and reinforced parts for ultimate high response

(1) Piston Kit, Piston weight:324g

• Lightweight A2618 aluminum alloy billet piston with high temperature strength
• Billet parts with lightweight design
• Improved structural rigidity with Truss construction
• 2 layers of molybdenum coating to eliminate friction and improve initial functionality of the whole system.
• Short piston pit with lightweight boss part.
• Φ22 Piston pin with improved torsion rigidity
• Utilizing shortened pin allows to avoid excessive weight while switching from smaller φ21mm one.

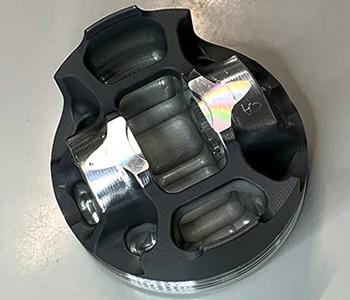

Lightweight A2618 aluminium alloy billet piston with high temperature strength

(2) Crankshaft Stroke 77.7mm

• Billet full counter crankshaft
• Counterweights are efficiently located to decrease overall weight and improve overall balance.
• Maximum output capacity is decreased to 700 hp in favor of improved response of the engine, possible thanks to minimized to the limits counterweights

(3) Connecting rods

• Nickel Chrome Steel Billet H-Beam Connecting rods.
• Φ22 Piston Pin
• WPC treatment to improve strength

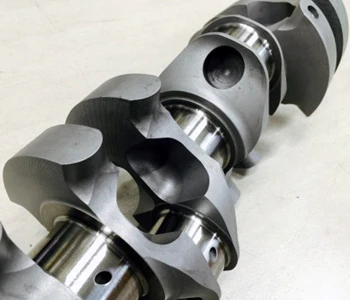

Crankshaft with minimized to the limits counterweights

Lightweight pin enlarged to φ22 to cope with high combustion pressure
