Mahle Pistons
These might be the nicest pistons we have gotten our hands on. We are really impressed by the quality of the build.Ā

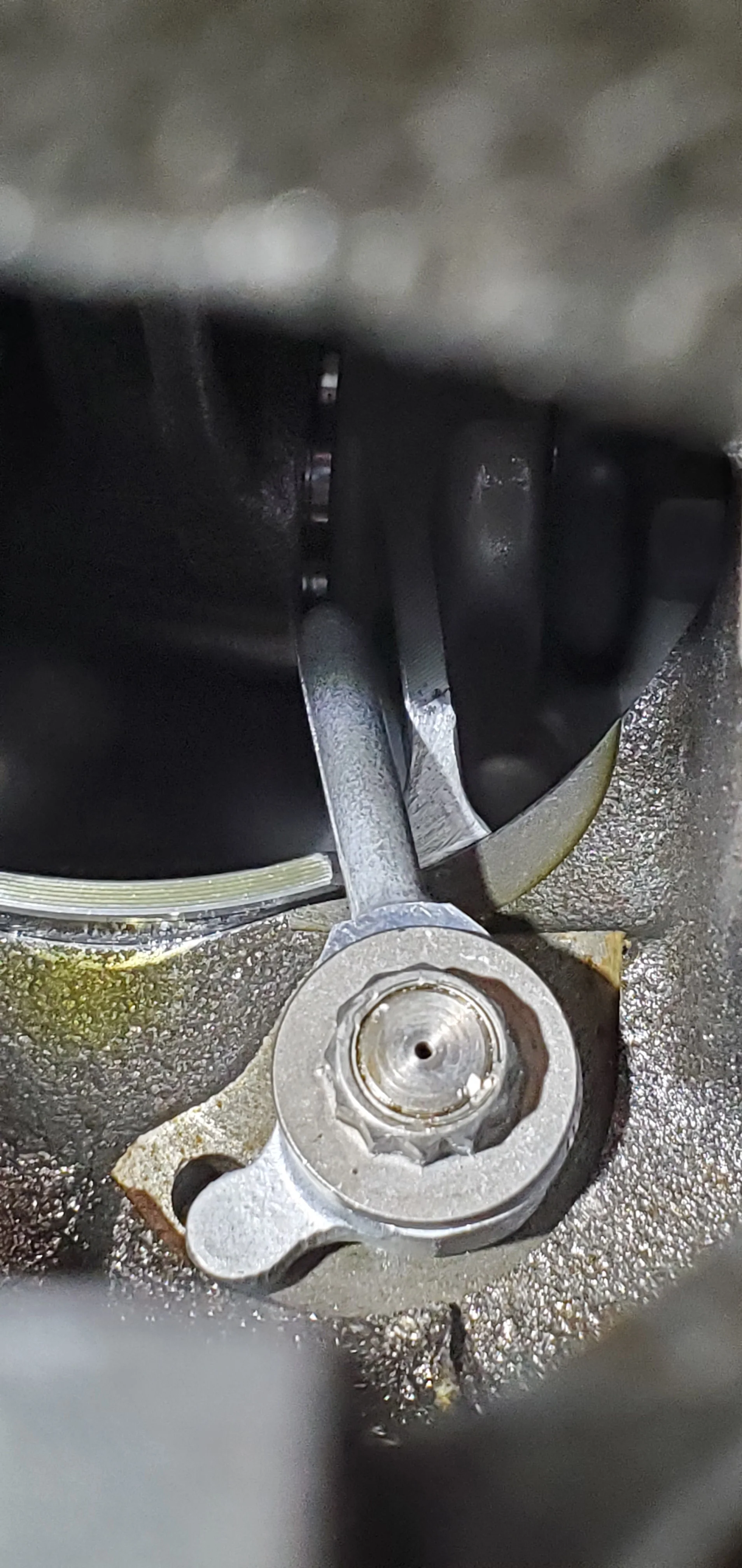

These pistons require notching the piston and moving the oil squirter to the side for clearance.Ā

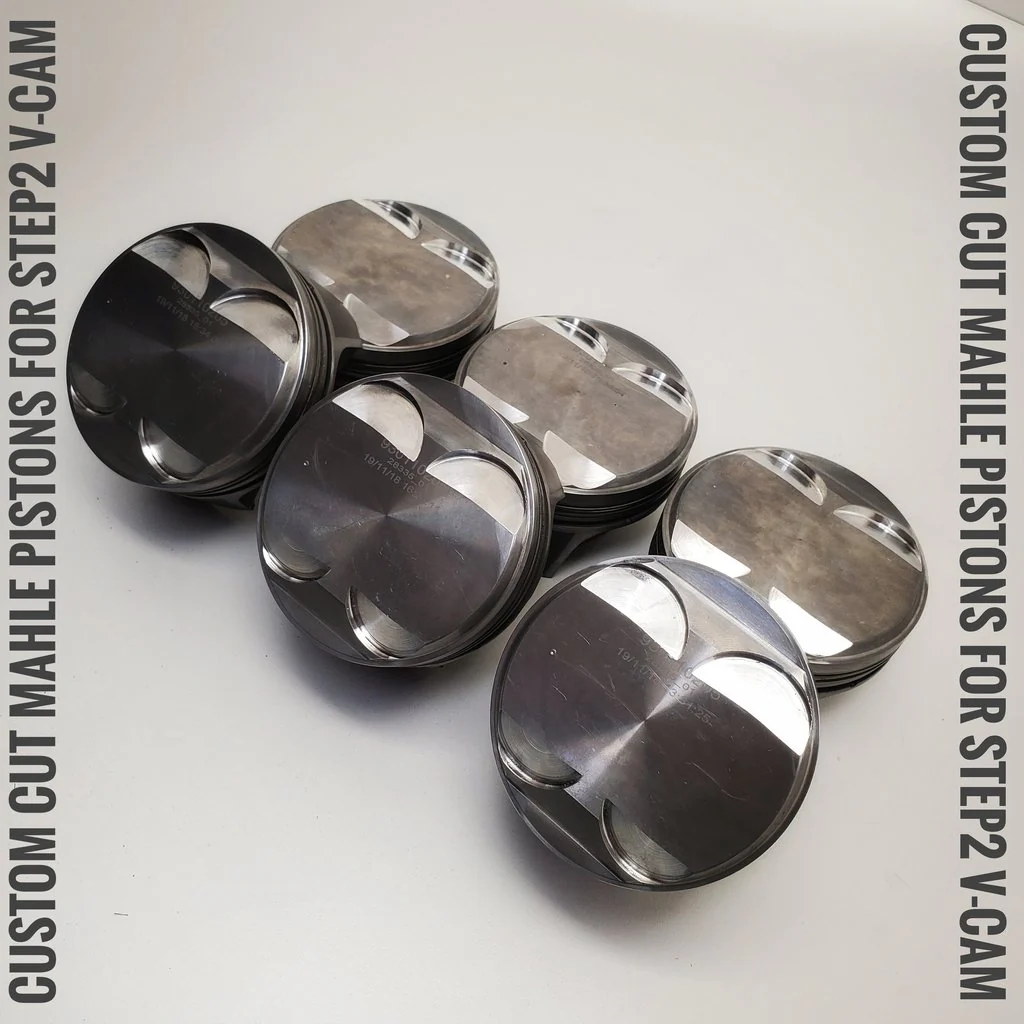

We can also have these pistons cut to clear HKS Step2 V-Cam.
We can also have these pistons cut to clear HKS Step2 V-Cam.
.
.
.

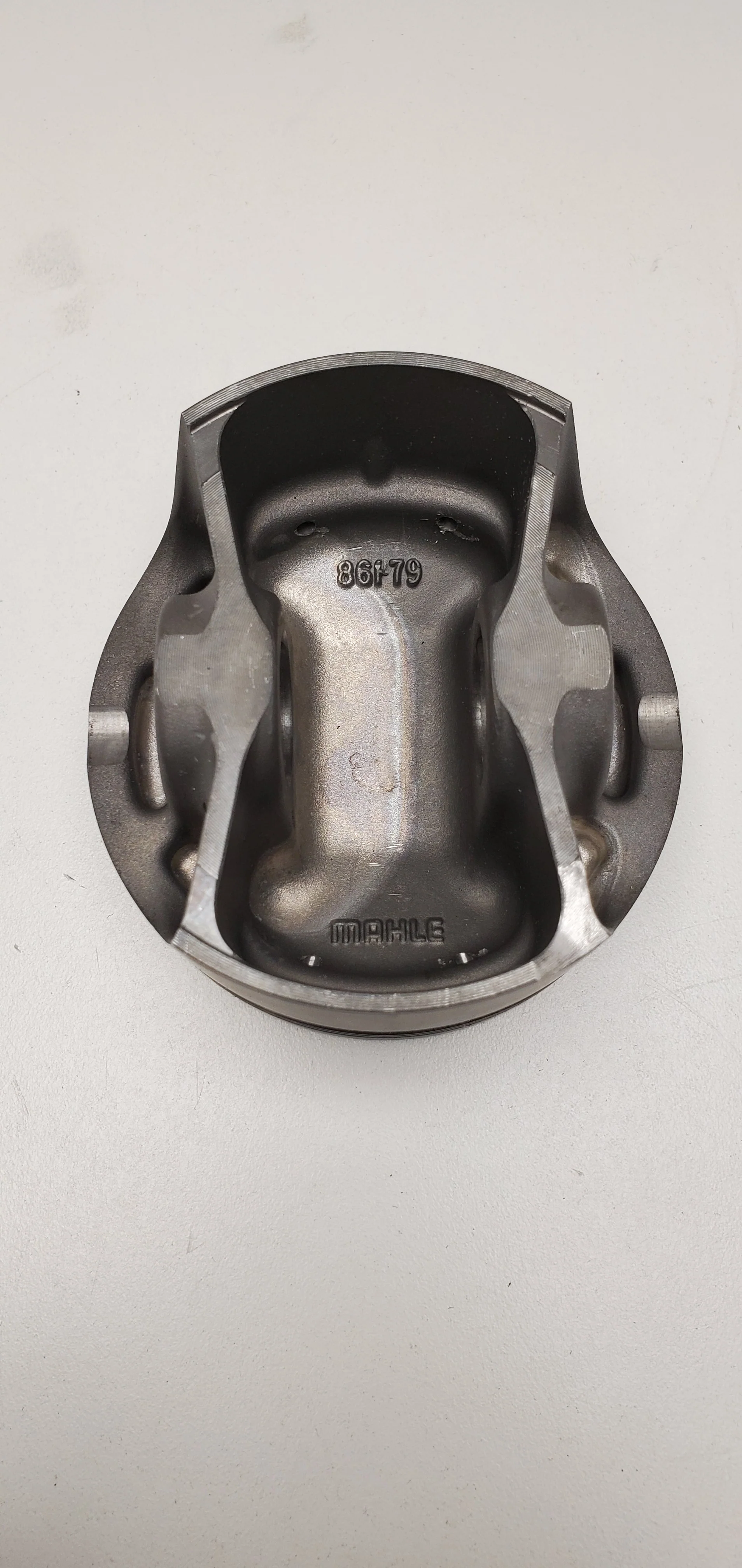

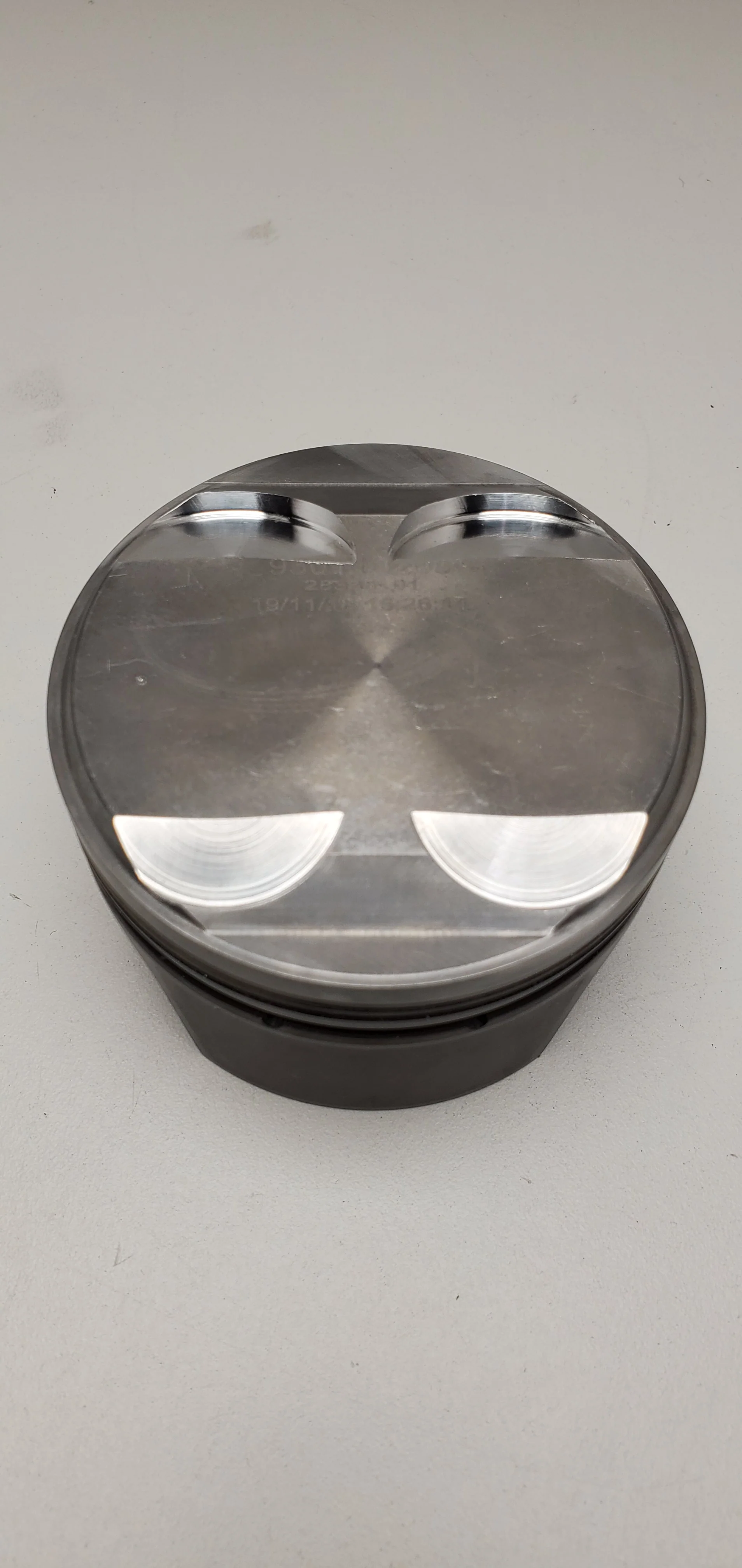

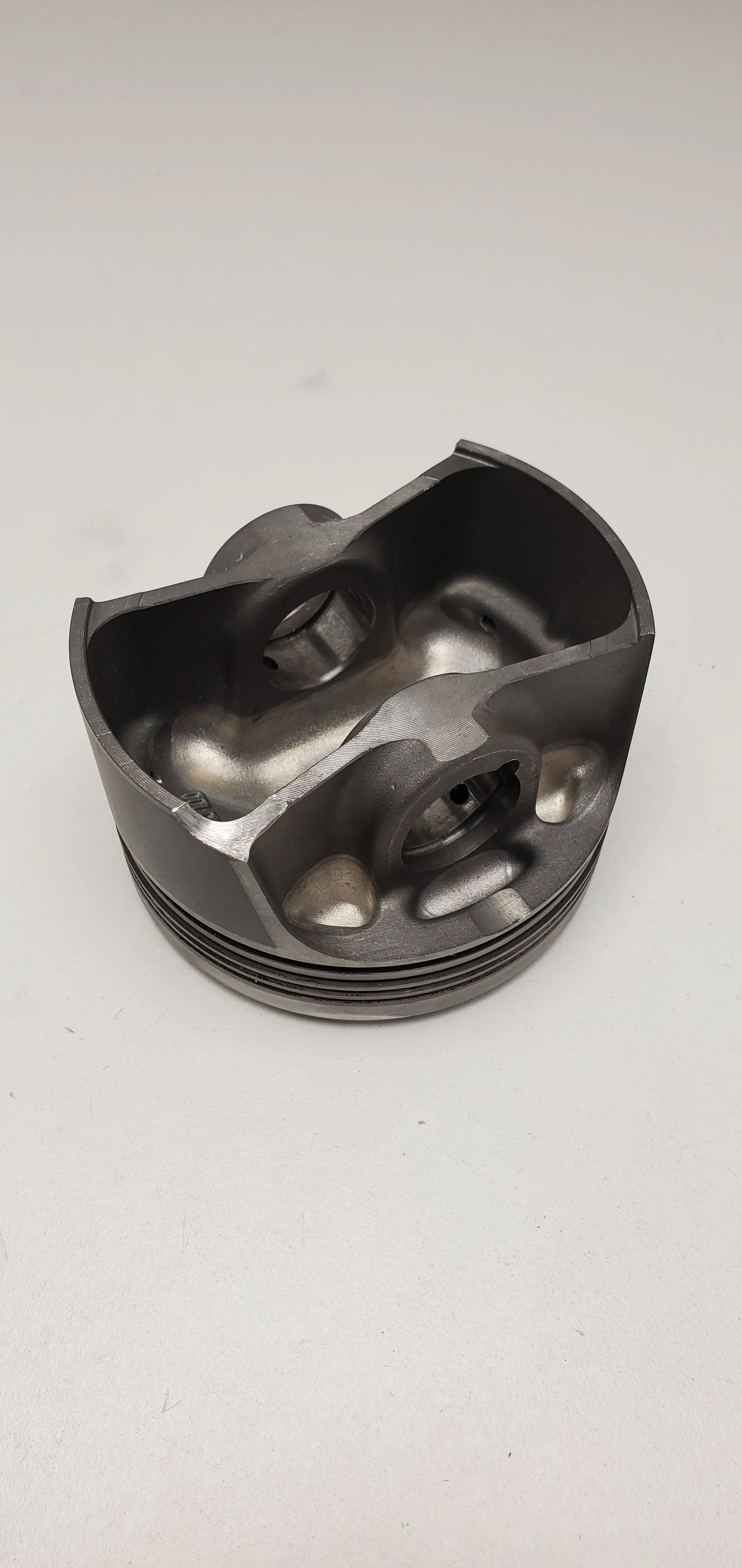

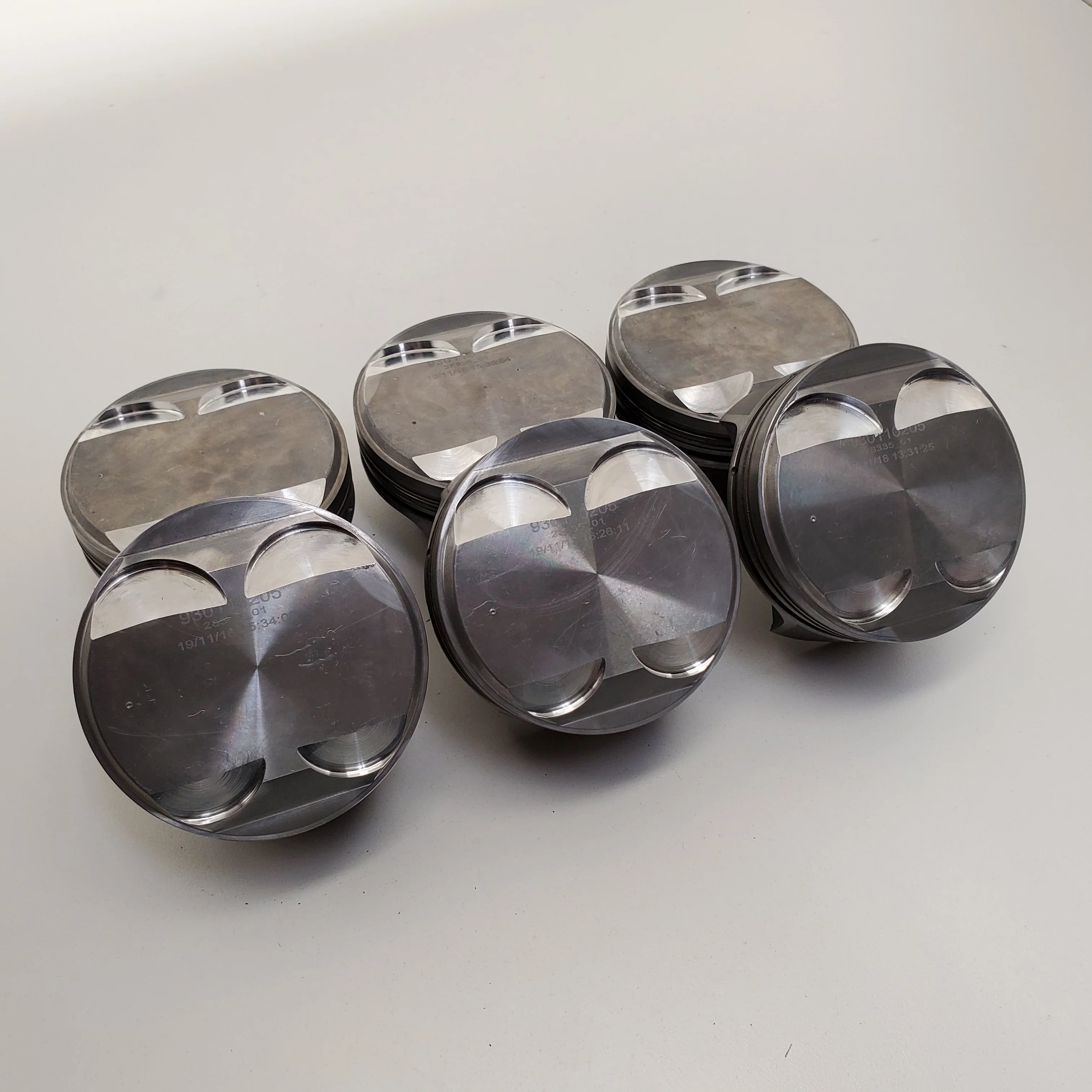

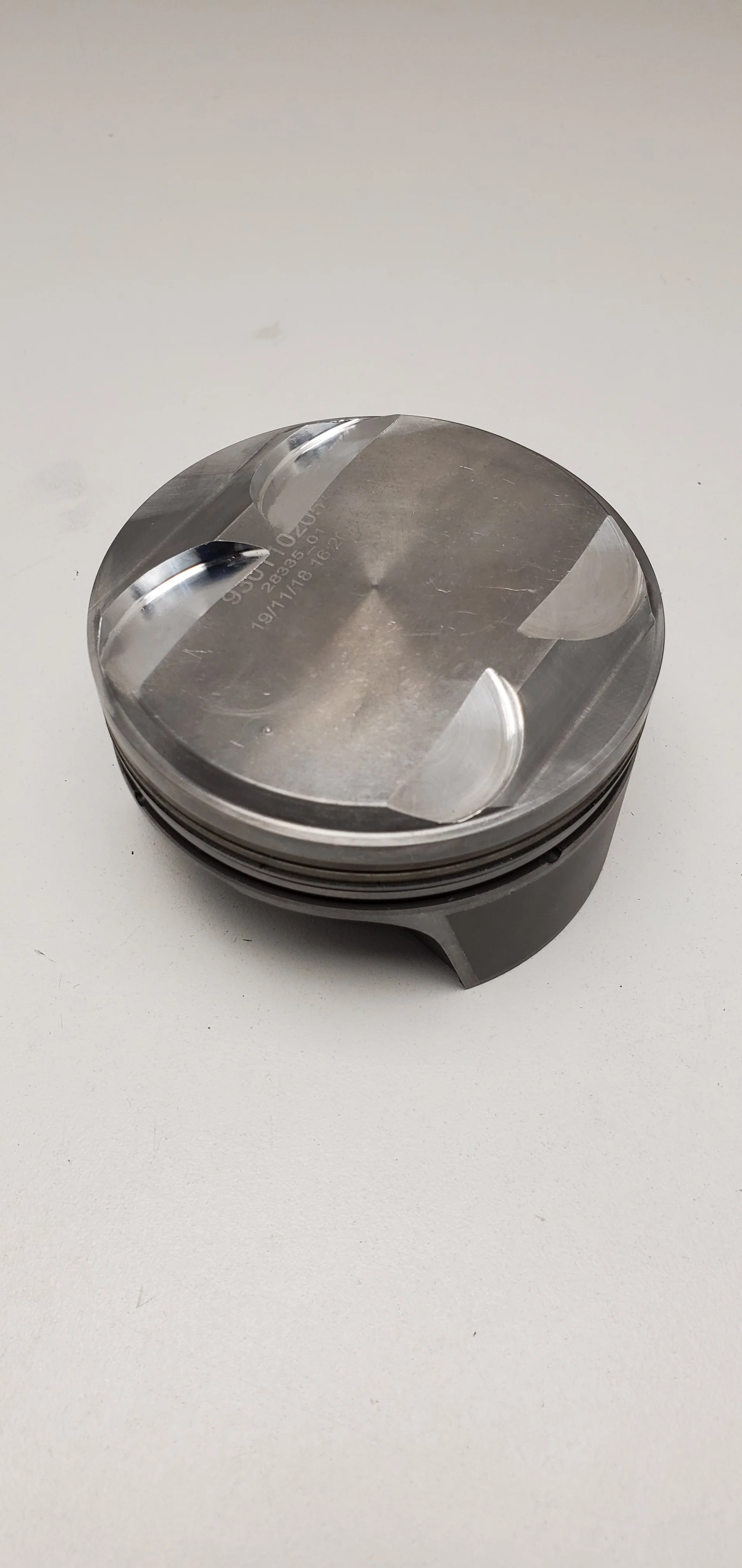

The Mahle PowerPak Plus is a complete, race proven piston assembly kit.

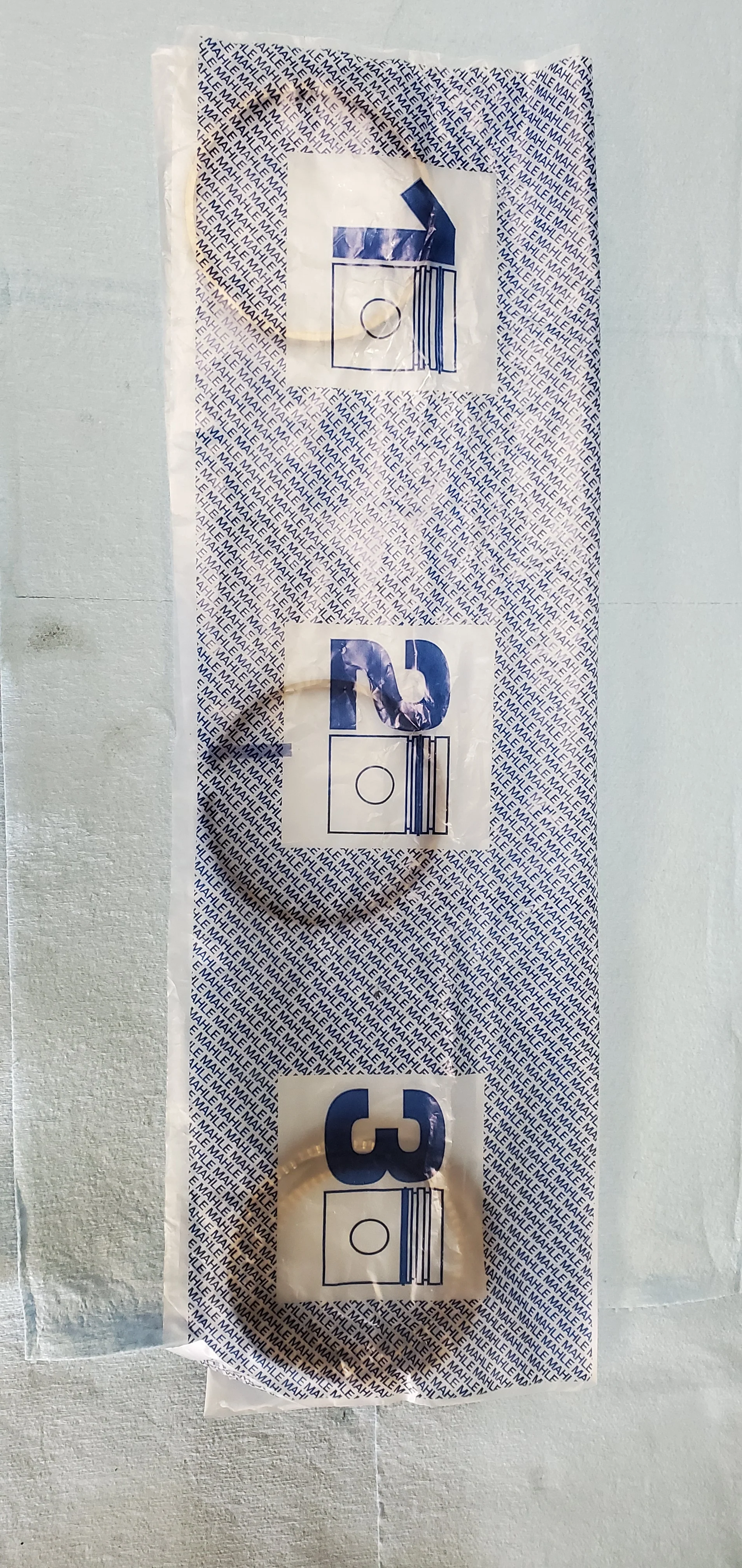

It is composed of hand deburred, forged, performance coated pistons, high quality steel pins, round wire locks and low drag performance file fit rings.
Performance coatings include a phosphate dry lubricant that is used to protect against ring micro-welding and pin galling during initial startup and break in. For added performance, MAHLE applies its proprietary Grafel anti-friction coating to each piston skirt.
It is composed of hand deburred, forged, performance coated pistons, high quality steel pins, round wire locks and low drag performance file fit rings.
Performance coatings include a phosphate dry lubricant that is used to protect against ring micro-welding and pin galling during initial startup and break in. For added performance, MAHLE applies its proprietary Grafel anti-friction coating to each piston skirt.
Specifications
| Note | Must check oil squirter clearance, possible modification needed. PowerPak Plus 2618 Alloy & Hard Anodized Top Ring Groove For Extreme Duty Applications |
| Item Weight | 366 g |
| Shipping Weight (Dimensional) | 6.1700 |
| Part Type | Pistons |
| Make | Nissan / Infiniti |
| Vehicle Model | Skyline GT-R R32 R33 R34 |
| Vehicle Group | Skyline GT-R 89-94 R32, Skyline GT-R 95-98 R33, Skyline GT-R 99-02 R34 |
| Engine | RB26DETT |
| Compression Ratio | 8.5:1 |
| Bore Diameter | 86.5mm |
| Pin Size | 0.827" / 21mm |
| Head cc | 65 cc |
| Dome cc | 16 cc |
| Compression Height | 1.190" / 30.25mm |
| Piston Coating | Skirt Coating |
| Manufacturer | Mahle |
| Stroke | 73.7mm |
| Skirt Type | Slipper Skirt |
| Rod Length | 4.783" / 121.5mm |
| Piston Material | 2618 |
| Compression Ratio Range | 8.0:1 - 9.0:1 |
| Bore Oversize | 0.020" / 0.5mm |
| Engine Head | RB26DETT |
| Rod Length Oversize | Standard Length |
| Carb Legal | Unspecified |
| Stroke Oversize | Standard |
| Product Flags | N/A |
Select Size
Select Clearance for V-Cam
From $950.00
Mahle Pistonsā
$950.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
These might be the nicest pistons we have gotten our hands on. We are really impressed by the quality of the build.Ā
These pistons require notching the piston and moving the oil squirter to the side for clearance.Ā
We can also have these pistons cut to clear HKS Step2 V-Cam.
We can also have these pistons cut to clear HKS Step2 V-Cam.
.
.
.
The Mahle PowerPak Plus is a complete, race proven piston assembly kit.
It is composed of hand deburred, forged, performance coated pistons, high quality steel pins, round wire locks and low drag performance file fit rings.
Performance coatings include a phosphate dry lubricant that is used to protect against ring micro-welding and pin galling during initial startup and break in. For added performance, MAHLE applies its proprietary Grafel anti-friction coating to each piston skirt.
It is composed of hand deburred, forged, performance coated pistons, high quality steel pins, round wire locks and low drag performance file fit rings.
Performance coatings include a phosphate dry lubricant that is used to protect against ring micro-welding and pin galling during initial startup and break in. For added performance, MAHLE applies its proprietary Grafel anti-friction coating to each piston skirt.
Specifications
| Note | Must check oil squirter clearance, possible modification needed. PowerPak Plus 2618 Alloy & Hard Anodized Top Ring Groove For Extreme Duty Applications |
| Item Weight | 366 g |
| Shipping Weight (Dimensional) | 6.1700 |
| Part Type | Pistons |
| Make | Nissan / Infiniti |
| Vehicle Model | Skyline GT-R R32 R33 R34 |
| Vehicle Group | Skyline GT-R 89-94 R32, Skyline GT-R 95-98 R33, Skyline GT-R 99-02 R34 |
| Engine | RB26DETT |
| Compression Ratio | 8.5:1 |
| Bore Diameter | 86.5mm |
| Pin Size | 0.827" / 21mm |
| Head cc | 65 cc |
| Dome cc | 16 cc |
| Compression Height | 1.190" / 30.25mm |
| Piston Coating | Skirt Coating |
| Manufacturer | Mahle |
| Stroke | 73.7mm |
| Skirt Type | Slipper Skirt |
| Rod Length | 4.783" / 121.5mm |
| Piston Material | 2618 |
| Compression Ratio Range | 8.0:1 - 9.0:1 |
| Bore Oversize | 0.020" / 0.5mm |
| Engine Head | RB26DETT |
| Rod Length Oversize | Standard Length |
| Carb Legal | Unspecified |
| Stroke Oversize | Standard |
| Product Flags | N/A |
